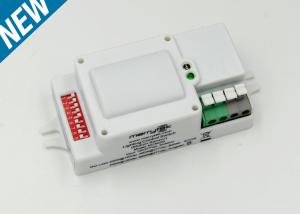

120-277vAC North Amercial Microwave Motion Sensor MC602S With FCC & UL Approval
Description:
MC602S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. The high quality relay is particularly suitable for commercial use with switching power up to 1000W Max @277v ac Operate .
As it uses the third generation Merrytek technology ,normal 5.8GHz microwave module can easily reach high mounting high up to 12m and long detection area 8-9m in radius .
1. Automatic switching based on motion and ambient light level.
2. Support higher mounting height 15m Max.
3. Wide detection area ,range up to 20m in diameter
4. Zero-crossing point operation helps protect the sensor against in-rush current..
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6. 4-pole press-in terminal (L, N, N,L′),easy assembly.
7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
Function:
ON-OFF function
Detection Pattern:
Specifications:
| Operating voltage | 120-277Vac, 50Hz/60Hz |
| Rated load | 200W@120Vac 400W@277Vac (ballast);400W@120Vac 800W@277Vac(resistive) |
| HF system | 5.8GHz±75MHz, ISM wave band |
| Power consumption | ≤0.5W(standby), <1W(operation) |
| Transmitting power | <0.5mW |
| Detection zone Max.(D x H) | 30*15m |
| Motion detection | 0.5~3m/s |
| Detection angle | 150°(wall installation) 360°(ceiling installation) |
| IP rating | IP20 |
| Operation temperature | -20℃~60℃ |
| Hold time | 5s / 30s / 90s / 3min / 20min / 30min |
| Detection sensitivity | 25% / 50% / 75% / 100% |
| Daylight sensor | 5lux / 10lux / 30lux / 50lux / 100lux / 150lux / Disable |
| Life time | 50,000 hours |
| Guaranty | 5 years |
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc
Download:
MC602S.pdf
